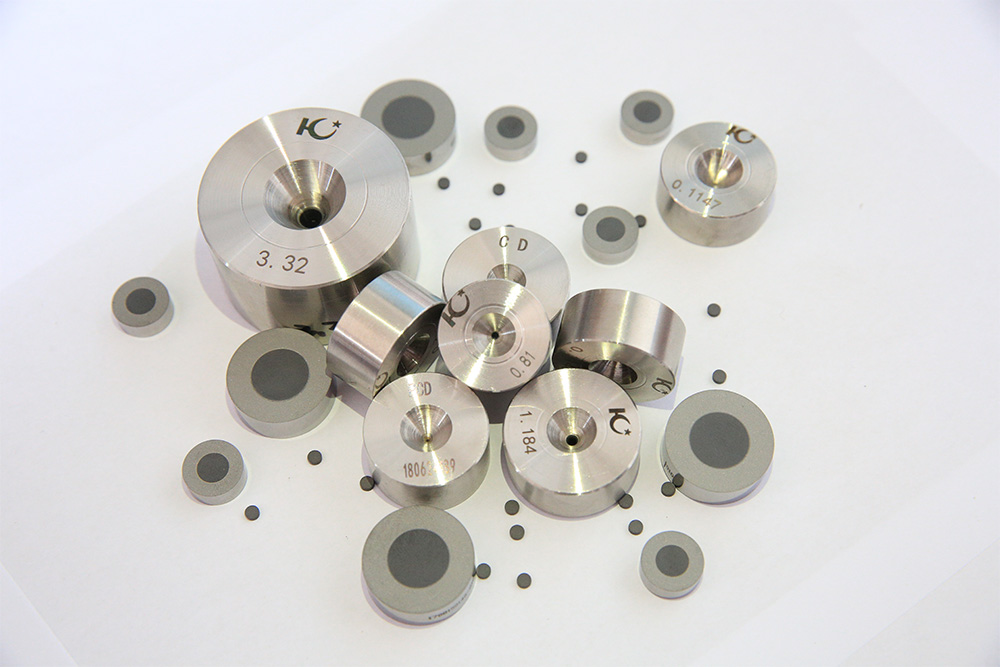

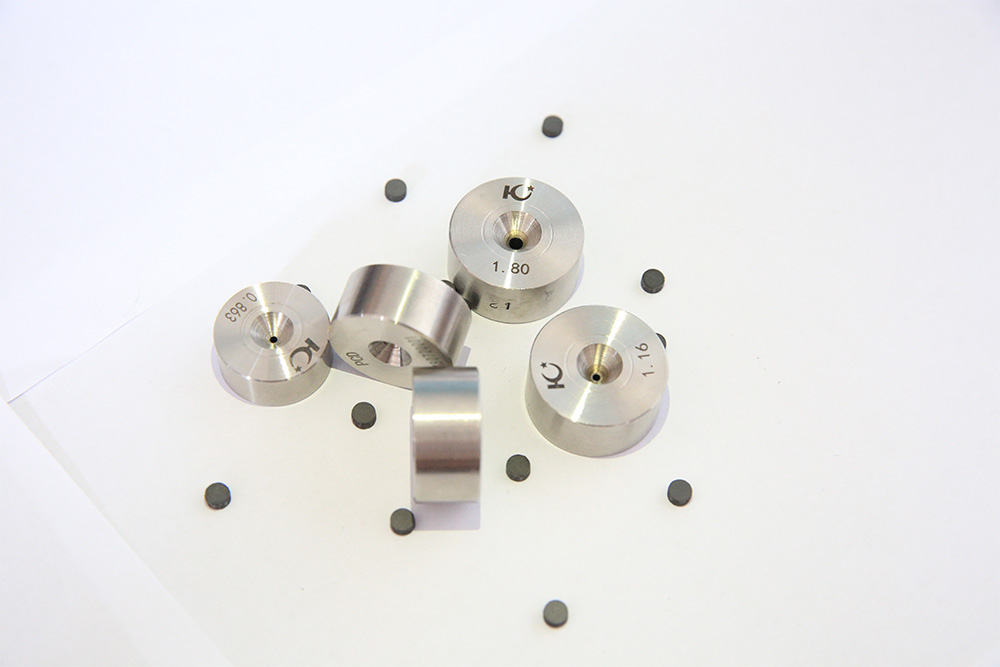

Nano wire drawing dies
Nano-coated wire drawing die is based on tungsten steel die, after die trimming and special pre-treatment, then coated with multi-layers of nano-grade diamond film by ultra-vacuum equipment, polished, and nested to become a finished product.
Advantages:
- Special pre-treatment technology creates superb film-base bonding, extending mould life;
- Ultra-long life, greatly reducing the frequency of mould change;
- Ultra-fine nano-polished surface to enhance wire quality;
- Increased drawing rate, realising ultra-high speed drawing and improving production efficiency;
- No need for special cooling, water cooling can ensure long life;
- No need for special lubrication, clean lubrication medium can achieve the long service life of the mould.
Applications:
Can be used in all wet and dry drawing processes, mainly for larger sizes, where wear and tear is critical, but surface finish is less important.
- Welding Wires
- High carbon steel wire
- Low and medium carbon steel wire
- Stainless steel wire
- Copper and aluminium wire
- Various shaped tubes and wires
STANDARD SPECIFICATIONS | |||
Reduction angle and Bearing length | Soft wire products... | ||
Reduction angle | Soft wire | Hard wire | |
5%-8% | 12°±2° | 8°±1° | |
8%-12% | 14±2° | 10°±1° | |
12%-16% | 16°±2° | 14°±1° | |
16%-25% | 20°±2° | 15°±1° | |
25%-35% | 23°±1° | 17°±1° | |
Bearings length | 0.2-0.5d | 0.3-0.8d | |
Standard configurations for other wire types also available. | |||
Application | Project | Standard | Remark |
enameled wire,copper wire,aluminum wire,copper clad aluminum wire,gold wire,silver wire and other non-ferrous metal wire | Entrance angle | 30°±5° | It is recommended to use ND die,imported PCD die and CD drawing die.It is suitable for multi head wire drawing machine |
Reduction Angle | 16°±2° | ||
Bearing Length | 20%-50%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±5° | ||
stainless steel wire,spring wire,welding wire,etc. | Entrance angle | 30°±5° | It is recommended to use CD die and import PCD die. |
Reduction Angle | 14°±2° | ||
Bearing Length | 40%-80%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±5° | ||
diamond wire busbar,steel cord,rubber tube wire,etc | D<0.1mm | D±0.3um | -It is recommended to use imported polycrystalline drawing die,Sumitomo 805f blanks. |
0.1mm≤D<0.2mm | D±0.5um | ||
Reduction Angle | 8⁰ ±1° | ||
Bearing Length | 20%-40%D | ||
Ovality | ≤0.2um | ||
Entrance /exit angle | 60±10° | ||
Back relief | 10⁰ ±2° | ||
Concentricity | ≤15um |
MAIN TECHNICAL PARAMETERS | |||
Size Range(soft Wire) | Mini Tolerance | Case Diameter | Case Height |
0.1-0.5 | ±0.001 | 25/28 | 8/10 |
0.5-0.8 | ±0.003 | 25/28 | 8/10 |
0.8-1.0 | ±0.003 | 25/28 | 8/10/12 |
1.0-1.5 | ±0.003 | 25/28 | 10/12 |
1.5-1.8 | ±0.003 | 25/28/30 | 10/12/15 |
1.8-2.3 | ±0.005 | 25/28/30 | 12/14/15 |
2.3-2.9 | ±0.005 | 25/28/30 | 12/14/15 |
3.0-3.2 | ±0.005 | 35/40 | 20/25 |
3.2-3.4 | ±0.01 | 40/50/60 | 23/25/27 |
3.4-4.0 | ±0.01 | 40/50/60 | 23/25/27 |
4.0-5.0 | ±0.01 | 40/50/60 | 23/25/27 |
5.0-6.5 | ±0.01 | 40/50/60 | 23/25/27 |
6.5-8.0 | ±0.015 | 40/50/60 | 23/25/27 |
