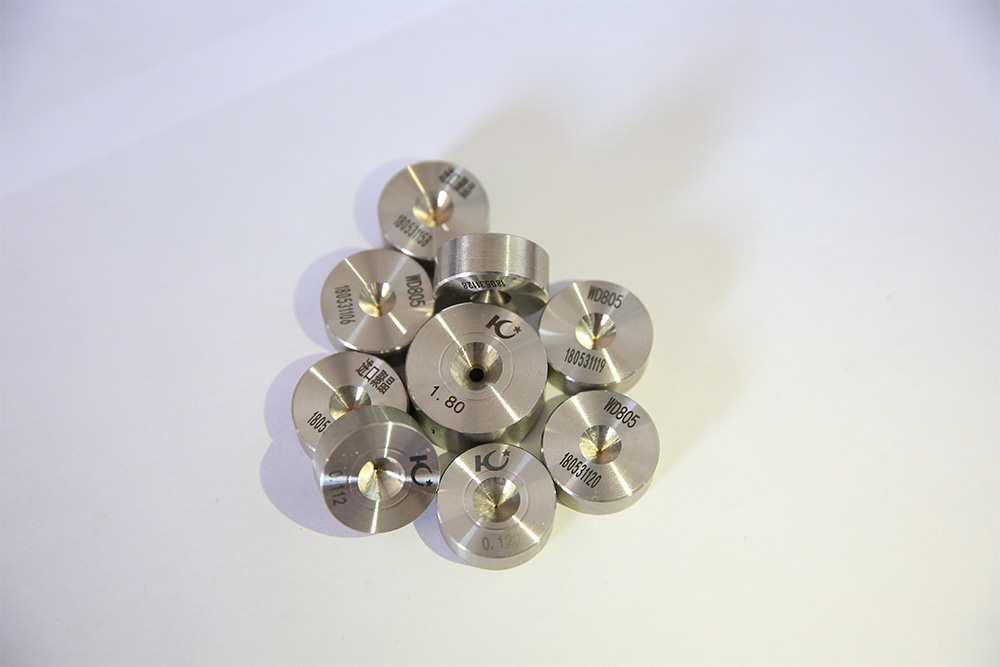

Imported PCD wire drawing die
The imported polycrystalline die core chosen by our factory mainly comes from Sumitomo Corporation of Japan and GE Corporation of the U.S.A. The imported polycrystalline wire drawing die produced by our factory has the advantages of long drawing life, high finish, high concentricity of the mould and precise control of the mould parameters.
Advantages:
- Suitable for all application ranges from large draws to ultra-micro draws.
- The dimensions of the stock are guaranteed, resulting in the largest possible reaming size to be expected.
- De-cobaltised polycrystalline material can be used for a wide range of applications in the drawing of high temperature hard wires.
- It has the longest life of any material on the market today, providing maximum productivity and reduced downtime.
- The unique physical properties of synthetic polycrystals allow the wire to be drawn even with worn out moulds to ensure good Roundness.
Applications:
Can be used in all wet and dry drawing processes, mainly in larger sizes and in drawing applications where wear is more demanding.
- Stainless steel wire (304 wire, 316L wire, 430 wire, 201 wire, 202 wire, etc.)
- Copper wire (pure copper wire, silver-copper alloy wire, aluminium-copper alloy wire, brass wire, copper-clad aluminium wire, etc.)
- Welding wire
- Cutting wire
- Saw Wire
- Special alloy wire
STANDARD SPECIFICATIONS | |||
Reduction angle and Bearing length | Soft wire products... | ||
Reduction angle | Soft wire | Hard wire | |
5%-8% | 12°±2° | 8°±1° | |
8%-12% | 14°±2° | 10°±1° | |
12%-16% | 16°±2° | 14°±1° | |
16%-25% | 20°±2° | 15°±1° | |
25%-35% | 23°±1° | 17°±1° | |
Bearings length | 0.2-0.5d | 0.3-0.8d | |
Standard configurations for other wire types also available. | |||
Application | Project | Standard | Remark |
enameled wire,copper wire,aluminum wire,copper clad aluminum wire,gold wire,silver wire and other non-ferrous metal wire | Entrance angle | 30°±5° | It is recommended to use ND die,imported PCD die and CD drawing die.It is suitable for multi head wire drawing machine |
Reduction Angle | 16°±2° | ||
Bearing Length | 20%-50%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±5° | ||
stainless steel wire,spring wire,welding wire,etc. | Entrance angle | 30°±5° | It is recommended to use CD die and import PCD die. |
Reduction Angle | 14°±2° | ||
Bearing Length | 40%-80%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±5° | ||
diamond wire busbar,steel cord,rubber tube wire,etc | D<0.1mm | D±0.3um | -It is recommended to use imported polycrystalline drawing die,Sumitomo 805f blanks. |
0.1mm≤D<0.2mm | D±0.5um | ||
Reduction Angle | 8⁰ ±1° | ||
Bearing Length | 20%-40%D | ||
Ovality | ≤0.2um | ||
Entrance /exit angle | 60±10° | ||
Back relief | 10⁰ ±2° | ||
Concentricity | ≤15um |
MAIN TECHNICAL PARAMETERS | |||
Size Range(soft Wire) | Mini Tolerance | Case Diameter | Case Height |
0.1-0.5 | ±0.001 | 25/28 | 8/10 |
0.5-0.8 | ±0.003 | 25/28 | 8/10 |
0.8-1.0 | ±0.003 | 25/28 | 8/10/12 |
1.0-1.5 | ±0.003 | 25/28 | 10/12 |
1.5-1.8 | ±0.003 | 25/28/30 | 10/12/15 |
1.8-2.3 | ±0.005 | 25/28/30 | 12/14/15 |
2.3-2.9 | ±0.005 | 25/28/30 | 12/14/15 |
3.0-3.2 | ±0.005 | 35/40 | 20/25 |
3.2-3.4 | ±0.01 | 40/50/60 | 23/25/27 |
3.4-4.0 | ±0.01 | 40/50/60 | 23/25/27 |
4.0-5.0 | ±0.01 | 40/50/60 | 23/25/27 |
5.0-6.5 | ±0.01 | 40/50/60 | 23/25/27 |
6.5-8.0 | ±0.015 | 40/50/60 | 23/25/27 |
Imported PCD wire drawing die
The imported polycrystalline die core chosen by our factory mainly comes from Sumitomo Corporation of Japan and GE Corporation of the U.S.A. The imported polycrystalline wire drawing die produced by our factory has the advantages of long drawing life, high finish, high concentricity of the mould and precise control of the mould parameters.
Advantages:
- Suitable for all application ranges from large draws to ultra-micro draws.
- The dimensions of the stock are guaranteed, resulting in the largest possible reaming size to be expected.
- De-cobaltised polycrystalline material can be used for a wide range of applications in the drawing of high temperature hard wires.
- It has the longest life of any material on the market today, providing maximum productivity and reduced downtime.
- The unique physical properties of synthetic polycrystals allow the wire to be drawn even with worn out moulds to ensure good Roundness.
Applications:
Can be used in all wet and dry drawing processes, mainly in larger sizes and in drawing applications where wear is more demanding.
- Stainless steel wire (304 wire, 316L wire, 430 wire, 201 wire, 202 wire, etc.)
- Copper wire (pure copper wire, silver-copper alloy wire, aluminium-copper alloy wire, brass wire, copper-clad aluminium wire, etc.)
- Welding wire
- Cutting wire
- Saw Wire
- Special alloy wire
STANDARD SPECIFICATIONS | |||
Reduction angle and Bearing length | Soft wire products... | ||
Reduction angle | Soft wire | Hard wire | |
5%-8% | 12°±2° | 8°±1° | |
8%-12% | 14°±2° | 10°±1° | |
12%-16% | 16°±2° | 14°±1° | |
16%-25% | 20°±2° | 15°±1° | |
25%-35% | 23°±1° | 17°±1° | |
Bearings length | 0.2-0.5d | 0.3-0.8d | |
Standard configurations for other wire types also available. | |||
Application | Project | Standard | Remark |
enameled wire,copper wire,aluminum wire,copper clad aluminum wire,gold wire,silver wire and other non-ferrous metal wire | Entrance angle | 30°±5° | It is recommended to use ND die,imported PCD die and CD drawing die.It is suitable for multi head wire drawing machine |
Reduction Angle | 16°±2° | ||
Bearing Length | 20%-50%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±5° | ||
stainless steel wire,spring wire,welding wire,etc. | Entrance angle | 30°±5° | It is recommended to use CD die and import PCD die. |
Reduction Angle | 14°±2° | ||
Bearing Length | 40%-80%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±5° | ||
diamond wire busbar,steel cord,rubber tube wire,etc | D<0.1mm | D±0.3um | -It is recommended to use imported polycrystalline drawing die,Sumitomo 805f blanks. |
0.1mm≤D<0.2mm | D±0.5um | ||
Reduction Angle | 8⁰ ±1° | ||
Bearing Length | 20%-40%D | ||
Ovality | ≤0.2um | ||
Entrance /exit angle | 60±10° | ||
Back relief | 10⁰ ±2° | ||
Concentricity | ≤15um |
MAIN TECHNICAL PARAMETERS | |||
Size Range(soft Wire) | Mini Tolerance | Case Diameter | Case Height |
0.1-0.5 | ±0.001 | 25/28 | 8/10 |
0.5-0.8 | ±0.003 | 25/28 | 8/10 |
0.8-1.0 | ±0.003 | 25/28 | 8/10/12 |
1.0-1.5 | ±0.003 | 25/28 | 10/12 |
1.5-1.8 | ±0.003 | 25/28/30 | 10/12/15 |
1.8-2.3 | ±0.005 | 25/28/30 | 12/14/15 |
2.3-2.9 | ±0.005 | 25/28/30 | 12/14/15 |
3.0-3.2 | ±0.005 | 35/40 | 20/25 |
3.2-3.4 | ±0.01 | 40/50/60 | 23/25/27 |
3.4-4.0 | ±0.01 | 40/50/60 | 23/25/27 |
4.0-5.0 | ±0.01 | 40/50/60 | 23/25/27 |
5.0-6.5 | ±0.01 | 40/50/60 | 23/25/27 |
6.5-8.0 | ±0.015 | 40/50/60 | 23/25/27 |
