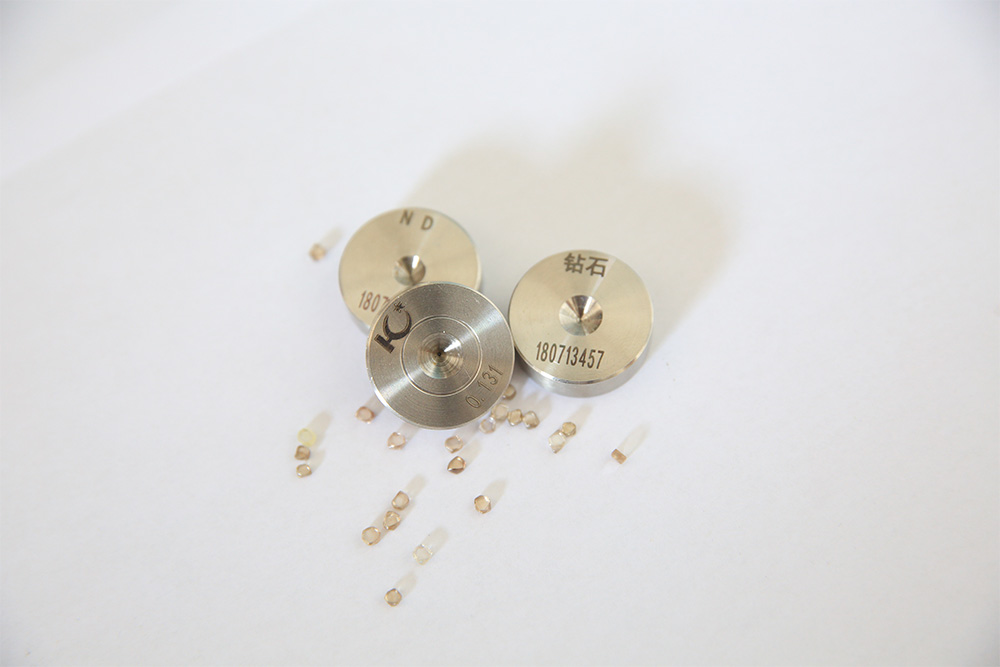

Natural Diamond Drawing Die
Natural diamonds are formed naturally in the earth's crust under high temperatures and pressures. Due to its extremely rigid and hard crystal structure, impurities such as boron or nitrogen may be mixed in the formation process. The natural diamonds used in Yudi Moulds are carefully selected to ensure their purity.
Advantages:
- Natural diamonds have the best surface finish of any core material.
- Extremely high hardness and resistance to wear and tear ensure the longevity of the mould.
- Natural diamonds have the highest thermal conductivity of all core materials and can be used in high temperature processes.
- Natural diamonds are resistant to temperatures up to 1700°C.
- Easy commissioning and smooth drawing process.
Applications:
Natural diamond dies are used for drawing fine and ultra-fine wires, or in applications requiring excellent wire surface finish, good heat dissipation, etc. Natural diamond dies can be used for a wide range of applications.
- Tungsten Wire, Molybdenum Wire
-Precious metal wires
- Semiconductor alloy wires (gold, copper, silver-plated copper, aluminium, silver alloy, etc.)
- Stainless steel wire (304 wire, 316L wire, 430 wire, 201 wire, 202 wire, etc.)
- Copper wire (pure copper wire, silver copper alloy wire, aluminium copper alloy wire, brass wire, copper-clad aluminium wire, etc.)
- Steel wire (Saw steel wire, spring steel wire, tyre copper-plated steel wire, etc.)
- Special alloy wires (copper-nickel alloy wires, nickel-chromium alloy wires, etc.)
STANDARD SPECIFICATIONS | |||
Reduction angle and Bearing length | Soft wire products... Hard wire products…… | ||
Reduction angle | Soft wire | Hard wire | |
5%-8% | 12°±2° | 8°±1° | |
8%-12% | 14°±2° | 10°±1° | |
12%-16% | 16°±2° | 14°±1° | |
16%-25% | 20°±2° | 15°±1° | |
25%-35% | 23°±1° | 17°±1° | |
Bearings length | 0.2-0.5d | 0.3-0.8d | |
Standard configurations for other wire types also available. | |||
Application | Project | Standard | Remark |
enameled wire,copper wire,aluminum wire,copper clad aluminum wire,gold wire,silver wire and other non-ferrous metal wire | Entrance angle | 30°±5° | It is recommended to use ND die,imported PCD die and CD drawing die.It is suitable for multi head wire drawing machine |
Reduction Angle | 16°±2° | ||
Bearing Length | 20%-50%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±° | ||
stainless steel wire,spring wire,welding wire,etc. | Entrance angle | 30°±5° | It is recommended to use CD die and import PCD die. |
Reduction Angle | 14°±2° | ||
Bearing Length | 40%-80%D | ||
Ovality | ≤ 1um | ||
Exit angle | 50°±20° | ||
Back relief | 15°±5° | ||
diamond wire busbar,steel cord,rubber tube wire,etc | D<0.1mm | D±0.3um | -It is recommended to use imported polycrystalline drawing die,Sumitomo 805f blanks. |
0.1mm≤D<0.2mm | D±0.5um | ||
Reduction Angle | 8°±1° | ||
Bearing Length | 20%-40%D | ||
Ovality | ≤0.2um | ||
Entrance /exit angle | 60±10° | ||
Back relief | 10⁰ ±2° | ||
Concentricity | ≤15um |
MAIN TECHNICAL PARAMETERS | |||
Size Range(soft Wire) | Mini Tolerance | Case Diameter | Case Height |
0.1-0.5 | ±0.001 | 25/28 | 8/10 |
0.5-0.8 | ±0.003 | 25/28 | 8/10 |
0.8-1.0 | ±0.003 | 25/28 | 8/10/12 |
1.0-1.5 | ±0.003 | 25/28 | 10/12 |
1.5-1.8 | ±0.003 | 25/28/30 | 10/12/15 |
1.8-2.3 | ±0.005 | 25/28/30 | 12/14/15 |
2.3-2.9 | ±0.005 | 25/28/30 | 12/14/15 |
3.0-3.2 | ±0.005 | 35/40 | 20/25 |
3.2-3.4 | ±0.01 | 40/50/60 | 23/25/27 |
3.4-4.0 | ±0.01 | 40/50/60 | 23/25/27 |
4.0-5.0 | ±0.01 | 40/50/60 | 23/25/27 |
5.0-6.5 | ±0.01 | 40/50/60 | 23/25/27 |
6.5-8.0 | ±0.015 | 40/50/60 | 23/25/27 |
